Fixed RFID readers

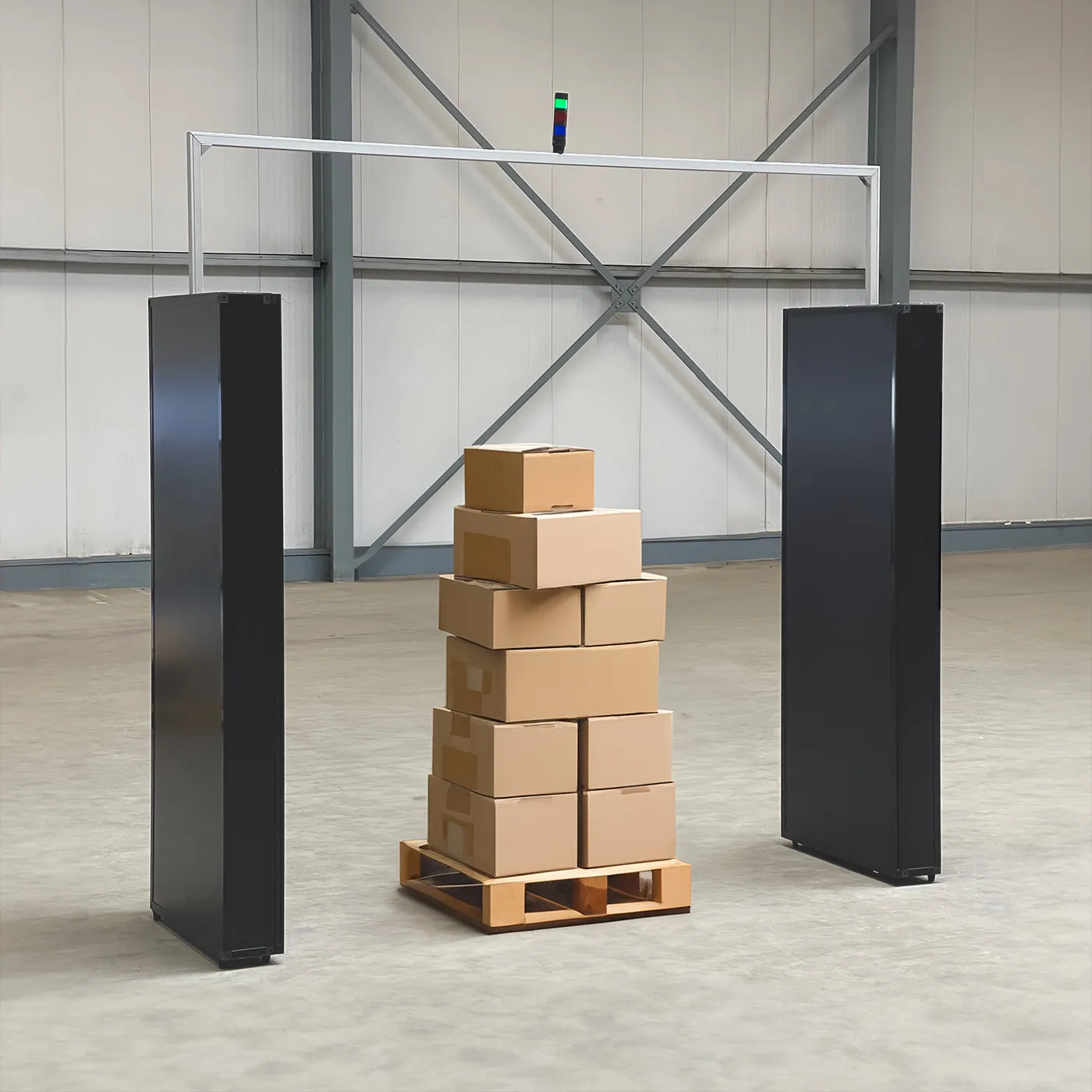

Beam RFID Portal
Our most advanced scanning solution. Automatically reads hundreds of RFID tags as items pass through perfect for dock doors, loading bays and high-traffic passages. Zero manual work, 100% accuracy.
Why choose the Beam RFID Portal
- Scan hundreds of items in seconds
- No missed scans, no errors
- Ideal for dock doors & passages
- Plug-and-play: operational within 1 day
- Directly connected with Beam real-time inventory
- Fewer returns, faster outbound
The advantage of an RFID gate
Unlike handhelds or overhead readers, a gate captures everything automatically as items pass through. No scanning actions, no items forgotten. Perfect for high-volume dock doors and loading bays.
- 100% hands-free — Walk or drive through you're done
- Never miss an item — Entire pallets scanned in seconds
- Scale without effort — Handle peaks without extra staff
Operational in hours, not days
Install at your dock door, connect power and network, and you're ready. Manage everything remotely through Beam no on-site IT needed.
- Plug & play installation — Mount, connect, and start scanning
- Remote management — Configure and update from anywhere
- Smart self-monitoring — Alerts you when attention is needed
Technical specifications
Performance
- Read rate
- Up to 1200 tags per second
- Detection range
- Up to 8 meters
- RFID frequency
- UHF 865-868 MHz (EU)
- Tag accuracy
- 99.9%+
Physical specifications
- Portal width
- 80 to 300 cm (configurable)
- Height
- 220 cm
- Weight
- ~45 kg
- Material
- Aluminum with RF shielding
Smart Features
- Direction detection
- In/out movement tracking
- Visual & audio alerts
- Optional LED and sound signals
- Offline capability
- Buffer up to 100,000 scans
- Remote management
- Cloud-based updates
Installation
- Power supply
- 230V AC or PoE+
- Network
- Ethernet or WiFi 6
- Setup time
- 4-8 hours
- Warranty
- 2 years (extendable to 5)
Frequently asked questions
How fast does the portal detect items?
The portal detects and reads all RFID tags instantly as they pass through typically hundreds of items in under 2 seconds, even on a full pallet or cart.
Does this work with our ERP/WMS?
Yes. The Beam RFID Portal integrates with all major ERP and WMS systems via REST API. We sync data in real time or in batches based on your preference.
What happens during network drop?
The portal stores all scans locally and automatically syncs when the connection is restored. No data is lost and operations continue uninterrupted.
How wide should the passage be?
The portal supports passages from 80 cm to 300 cm wide. We configure the system based on your dock door or passage dimensions.
What is the installation time?
Typical installation takes 4-8 hours. Most customers are operational within one business day, including calibration and testing.
Compatibility is only the beginning.
A reader’s ability to connect does not prove that every tag can be read reliably in every environment. That is why hardware, tags, products, read zones, volumes and exceptions are tested together before any performance commitment becomes part of the scope.
Product specifications describe the device. The right model, connectivity, availability and price are confirmed in your quote.
