RFID Handhelds

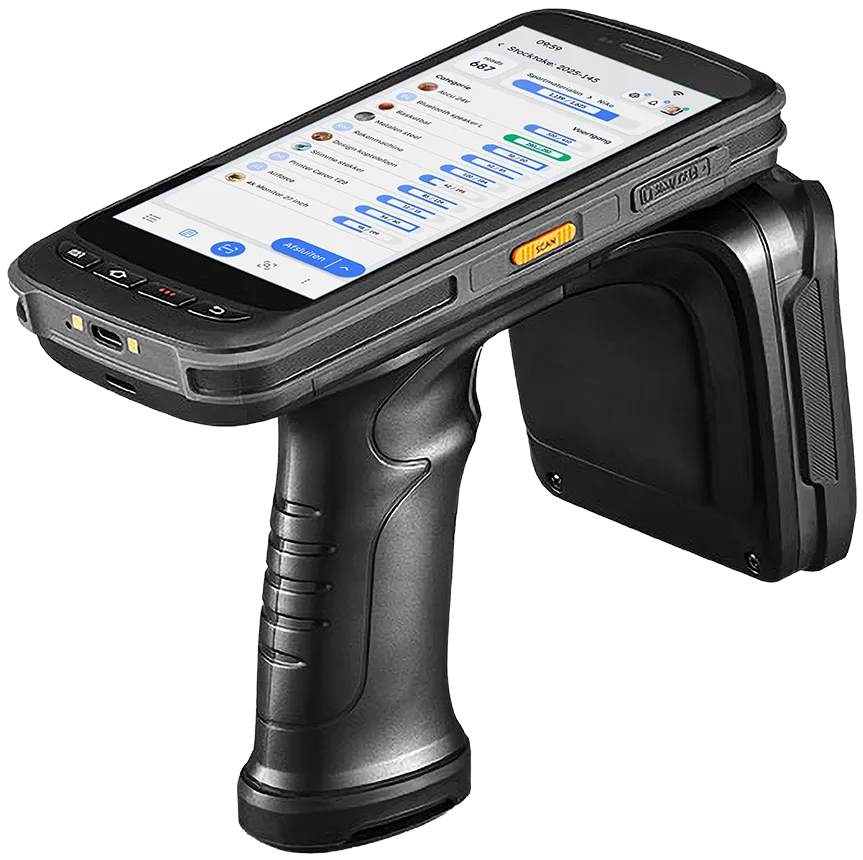

Beam Handheld Scanner
Install the Beam App and start scanning. The Beam Handheld Scanner integrates directly with the Beam App. Read and write RFID tags, run cycle counts, locate items and manage settings, all from one device. No configuration, no pairing, no setup. Just plug and play.
Why choose the Beam Handheld Scanner
- Install the Beam App and start scanning. Zero setup
- Read and write RFID tags directly from the Beam App
- Scan 1,300+ tags per second with Impinj E710
- Built-in cycle counting, order picking and item locator
- All-day battery life (8,000 mAh, 12+ hours)
- IP65 rated, 1.5m drop-proof for warehouse use
Install the Beam App and you're ready
The Beam Handheld Scanner is a Chainway C72 running Android with the Beam App pre-installed or downloadable. Once the app is on the device, everything works immediately: RFID reading, RFID writing, cycle counts, order verification, item locator and settings control. No external bridges, no pairing steps, no IT setup. Pick it up and go.
- Direct Beam App integration — Full RFID functionality through the Beam App out of the box
- Read and write — Read RFID tags and write/encode new tags directly
- Control everything — Manage scanner power, range and modes from the app
Rugged, reliable, ready to work
Drop-resistant design, all-day battery and a 5.2" touchscreen. Take it anywhere in the warehouse for cycle counts, order picking or finding misplaced items. Syncs automatically with the Beam platform when connected to WiFi. Works offline when needed. Scans are stored locally and synced later.
- All-day battery — 8,000 mAh for 12+ hours of continuous scanning
- Warehouse-proof — IP65 rated, survives 1.5m drops to concrete
- Smart sync — Auto-syncs via WiFi 5 (dual-band) or 4G
Technical specifications
RFID Performance
- RFID chip
- Impinj E710 (Gen2X)
- Read rate
- 1,300+ tags per second
- Read range
- Up to 30m (tag-dependent)
- RFID frequency
- 865-868 MHz (EU) / 902-928 MHz (US)
- TX power
- +5 to +30 dBm (adjustable)
Device Specifications
- Display
- 5.2" IPS, 1920 x 1080, Gorilla Glass
- Processor
- Octa-core 2.3 GHz
- Memory
- 4 GB RAM / 64 GB storage (+ microSD up to 256 GB)
- OS
- Android 11/13 (GMS certified)
- Camera
- 13 MP rear with autofocus and flash
- Barcode scanner
- Zebra SE4710 1D/2D imager (optional)
Physical Specifications
- Dimensions (with handle)
- 177 x 88.6 x 145.8 mm
- Weight (with handle)
- 654g (host only: 375g)
- IP rating
- IP65 (dust-tight, water jets)
- Drop spec
- 1.5m to concrete (20+ drops)
- Operating temp.
- -20°C to +50°C
Battery & Connectivity
- Battery
- 8,000 mAh Li-ion (12+ hours)
- Charging time
- 3-4 hours (full charge)
- WiFi
- 802.11 a/b/g/n/ac dual-band
- Bluetooth
- Bluetooth 5.0 (BLE)
- Other
- 4G LTE, NFC, GPS/GLONASS/BeiDou
Frequently asked questions
Do I need to configure anything to start scanning?
No. Install the Beam App on the Chainway C72 (or it comes pre-installed when ordered through Beam) and you can immediately start reading and writing RFID tags. The scanner integrates directly with the Beam App. No pairing, no bridge devices, no IT setup required.
Can I read and write RFID tags with this scanner?
Yes. Through the Beam App you can both read existing RFID tags and write/encode new ones directly from the handheld. This makes it ideal for tagging new inventory, updating tag data, or encoding replacement tags on the spot.
How many items can I scan per cycle count?
Unlimited. The handheld stores scans locally and syncs when connected to WiFi. You can scan thousands of items in a single session without worrying about memory limits.
Can I use this with my existing WMS?
Yes. The handheld syncs with the Beam platform, which integrates with all major WMS and ERP systems. Your scan data flows directly into your existing workflows.
How long does the battery really last?
8-10 hours of continuous scanning. In practice, most users get through a full shift with battery to spare. The optional charging dock keeps the scanner ready between shifts.
What if I drop it?
The scanner is built for warehouse use with IP65 rating and survives drops from 1.5 meters to concrete. If something does break, we offer next-day replacement under warranty.
Compatibility is only the beginning.
A reader’s ability to connect does not prove that every tag can be read reliably in every environment. That is why hardware, tags, products, read zones, volumes and exceptions are tested together before any performance commitment becomes part of the scope.
Product specifications describe the device. The right model, connectivity, availability and price are confirmed in your quote.
